Web Terminal - HTTP ERROR 401

Question

Question

Scott Roth · Jun 16, 2023

I am trying to add Web Terminal as a feature for my team to use.

I installed webterminal via zpm "install webterminal" ran on %SYS on our Development box.

%SYS>zpm "install webterminal"

[%SYS|webterminal] Reload START (/ensemble/DEV/mgr/.modules/%SYS/webterminal/4.9.6/)
[%SYS|webterminal] Reload SUCCESS
[webterminal] Module object refreshed.
[%SYS|webterminal] Validate START
[%SYS|webterminal] Validate SUCCESS
[%SYS|webterminal] Compile START
Recompiling WebTerminal, skipping the deletion...
Installing WebTerminal application to %SYS
Updating web application "/terminal"...
WEB application "/terminal" is updated.
Assigning role %DB_IRISSYS to a web application; resulting roles: :%DB_IRISSYS
Updating web application "/terminalsocket"...
WEB application "/terminalsocket" is updated.
Mapping %WebTerminal package into all namespaces: %All
WebTerminal package successfully mapped into all namespaces.
[%SYS|webterminal] Compile SUCCESS
[%SYS|webterminal] Activate START
[%SYS|webterminal] Configure START

And configured the web application/terminal...

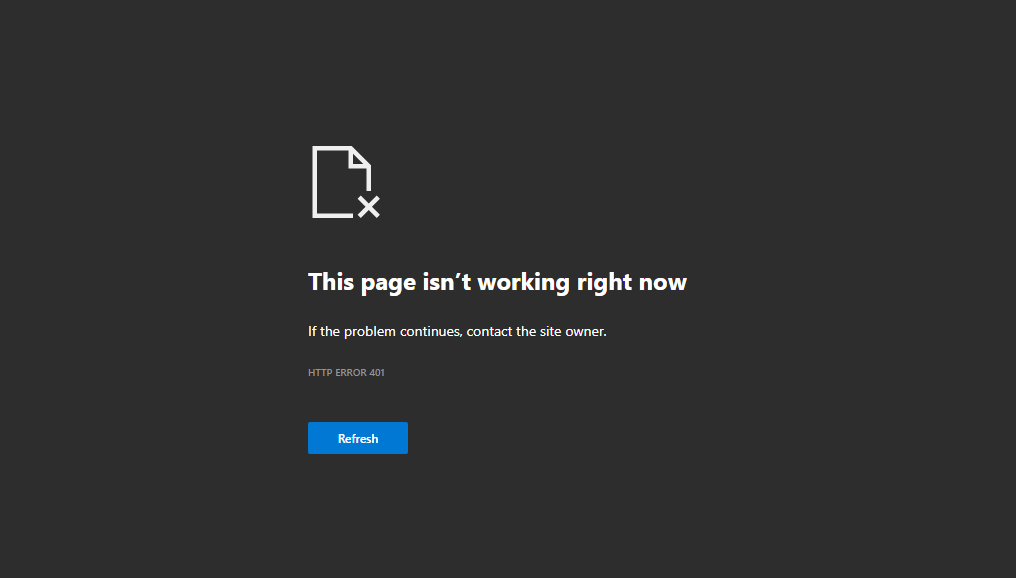

and gave my Developer Role access to Read, Use, Write Web Terminal. However when I go to try to launch the web terminal I am getting

I am not running any kind of SSL requirements through the Web Gateway or built in Apache. Can someone tell me if I missed something or how do I resolve this issue? If I change the Web Application to unauthentication then a page will load but it will be blank.

We use Delegated Authentication against AD to verify the user group before allowing access, because I am using ZAUTHENTICATE could that be an issue?

What I noticed by looking at the Security Audit is that when I click on the Web Terminal link it is claiming I am a UnknownUser - /terminal login failure. How to I get it to prompt a user for a user name and password?

Product version: IRIS 2022.1

$ZV: IRIS for UNIX (Red Hat Enterprise Linux 8 for x86-64) 2023.1 (Build 229U) Fri Apr 14 2023 17:16:34 EDT

Discussion (10)3

Log in or sign up to continue

Eduard Lebedyuk · Jun 21, 2023

Why will this only work in Chrome and not Microsoft Edge?

Is that a local server? Edge does not allow websockets on localhost.

In the Edge open About:flags page. Enable the "allow Localhost Loopback" feature.

0 0

score 0 · Answer 1 · 2023-06-16T15:13:47-04:00

just a hint:
Webterminal uses 2 connections:

http/https
wss/ws websockets

this might cause problems. just my guess

In WEBCOMMAND I use just 1 connection (rather straight CSP)
with less comfort

score 1 · Answer 2 · 2023-06-16T15:20:31-04:00

Hi @Scott Roth, when 2023.2 is released VS Code will support an integrated WebSocket-based terminal that's implemented as a new Atelier API endpoint. It will be available in kits by default and the vscode-objectscript. It's documented here and the newest beta version of the vscode-objectscript extension and 2023.2 previews have the needed code.

score 0 · Answer 3 · 2023-06-16T15:28:04-04:00

I don't think we will be going to 2023.2 anytime soon, as we just got to 2022.1 in May. It will be another year at least before we upgrade again. I am just trying to use this on the version we have currently and not through VSCode, I was trying to get this running for my team to use in edition to the Management Portal.

score 0 · Answer 4 · 2023-06-17T10:37:56-04:00

and another way to access terminal through web, is by using ttyd, I use it for irissqlcli-web. ttyd helps to webify any terminal application, it can be bash, or iris session

score 0 · Answer 5 · 2023-06-19T02:52:55-04:00

Which browser do you use? I noticed that in Edge the credentials box is not popped-up resulting an 401 error, so you need to work with "IE mode" (on chrome, it does pop-up).

score 0 · Answer 6 · 2023-06-20T10:07:25-04:00

Scott Roth · Jun 20, 2023

I did try Chrome, but now I am receiving...

WebTerminal lost connection with server (code 1006).

0 0

score 0 · Answer 7 · 2023-06-20T15:51:59-04:00

Can you show the definition for /terminalsocket web app please?

If it's a DEV server, add %ALL to it and check if it works.

Also, check Audit DB for PROTECT errors.

score 0 · Answer 8 · 2023-06-20T16:03:11-04:00

%ALL was the issue. Why will this only work in Chrome and not Microsoft Edge? Chrome is a pig when it comes to Memory so I have been looking for an alternative.

score 0 · Answer 9 · 2024-02-15T16:50:30-05:00

Scott Roth · Feb 15

How do I configure Apache/Web Gateway to allow this connection to happen?

0 0
