Thanks for the help from @Stefan Cronje and @Vitaliy Serdtsev
I'm using the SQL

select count(1) from (

select distinct by (VISIT_SERIAL_NO,HQ_ORG_CODE) VISIT_SERIAL_NO,HQ_ORG_CODE

from %PARALLEL ST_SEARCH_VISIT

)

which ends in 2 seconds in my test env

Since the end user is expecting a query ends in 3 seconds, I'll test its performance with their other conditions combined.

Thanks again for the help.

Hi Vitaliy,

Yes Benjamin also find out that the exported DDL is not consistent to the class definition, but users source code is so far controlled by the end user thus we'll need to wait until they can share it with us.

But I'm not sure what happened in your test with the Fill() method as mentioned above.

In the clients env, there are more than 7 million records and the result of count distinct end is 40,000 less than the total number, which means only a very small portion of VISIT_SERIAL_NO,HQ_ORG_CODE is not unique. Thus I used populate facility to generate 6 million data and the result of count distinct is more than 5.99 million. Then the query is slow.

while the distinct by version is much better

Both was run after tune table and rebuild indecies

You can find the class file I used in the test as below, so far I only used too index to handle this case, if any other index is helpful, we may add it back

Class User.STSEARCHVISIT Extends (%Persistent, %Populate) [ ClassType = persistent, DdlAllowed, Final, Owner = {SuperUser}, ProcedureBlock, SqlRowIdPrivate, SqlTableName = ST_SEARCH_VISIT ]
{

Property HQORGCODE As %Library.String(MAXLEN = 32) [ SqlColumnNumber = 2, SqlFieldName = HQ_ORG_CODE ];
Property HQORGNAME As %Library.String(MAXLEN = 32) [ SqlColumnNumber = 3, SqlFieldName = HQ_ORG_NAME ];
Property TENANTID As %Library.String(MAXLEN = 32) [ SqlColumnNumber = 4, SqlFieldName = TENANT_ID ];
Property GROUPPATIENTSN As %Library.String(MAXLEN = 32) [ SqlColumnNumber = 5, SqlFieldName = GROUP_PATIENT_SN ];
Property ORGPATIENTSN As %Library.String(MAXLEN = 32) [ SqlColumnNumber = 6, SqlFieldName = ORG_PATIENT_SN ];
Property NAME As %Library.String(MAXLEN = 64) [ SqlColumnNumber = 7 ];
Property SEXCODE As %Library.String(MAXLEN = 2) [ SqlColumnNumber = 8, SqlFieldName = SEX_CODE ];
Property SEXNAME As %Library.String(MAXLEN = 16) [ SqlColumnNumber = 9, SqlFieldName = SEX_NAME ];
Property BIRTHDATE As %Library.Date [ SqlColumnNumber = 10, SqlFieldName = BIRTH_DATE ];
Property MARRYCODE As %Library.String(MAXLEN = 2) [ SqlColumnNumber = 11, SqlFieldName = MARRY_CODE ];
Property MARRYNAME As %Library.String(MAXLEN = 16) [ SqlColumnNumber = 12, SqlFieldName = MARRY_NAME ];
Property IDENTIFYTYPECODE As %Library.String(MAXLEN = 5) [ SqlColumnNumber = 13, SqlFieldName = IDENTIFY_TYPE_CODE ];
Property IDENTIFYTYPENAME As %Library.String(MAXLEN = 32) [ SqlColumnNumber = 14, SqlFieldName = IDENTIFY_TYPE_NAME ];
Property IDENTIFYNUMBER As %Library.String(MAXLEN = 50) [ SqlColumnNumber = 15, SqlFieldName = IDENTIFY_NUMBER ];
Property BLOODTYPECODE As %Library.String(MAXLEN = 2) [ SqlColumnNumber = 16, SqlFieldName = BLOOD_TYPE_CODE ];
Property BLOODTYPENAME As %Library.String(MAXLEN = 12) [ SqlColumnNumber = 17, SqlFieldName = BLOOD_TYPE_NAME ];
Property MOBILE As %Library.String(MAXLEN = 50) [ SqlColumnNumber = 18 ];
Property MAILINGADDRESS As %Library.String(MAXLEN = 127) [ SqlColumnNumber = 19, SqlFieldName = MAILING_ADDRESS ];
Property VISITSERIALNO As %Library.String(MAXLEN = 64) [ SqlColumnNumber = 20, SqlFieldName = VISIT_SERIAL_NO ];
Property TABLEFLAG As %Library.String(MAXLEN = 1) [ SqlColumnNumber = 21, SqlFieldName = TABLE_FLAG ];
Property VISITTYPECODE As %Library.String(MAXLEN = 24) [ SqlColumnNumber = 22, SqlFieldName = VISIT_TYPE_CODE ];
Property VISITTYPENAME As %Library.String(MAXLEN = 64) [ SqlColumnNumber = 23, SqlFieldName = VISIT_TYPE_NAME ];
Property VISITDEPTCODE As %Library.String(MAXLEN = 32) [ SqlColumnNumber = 24, SqlFieldName = VISIT_DEPT_CODE ];
Property VISITDEPTNAME As %Library.String(MAXLEN = 64) [ SqlColumnNumber = 25, SqlFieldName = VISIT_DEPT_NAME ];
Property INOUTVISITNO As %Library.String(MAXLEN = 32) [ SqlColumnNumber = 26, SqlFieldName = IN_OUT_VISIT_NO ];
Property VISITTIME As %Library.TimeStamp [ SqlColumnNumber = 27, SqlFieldName = VISIT_TIME ];
Property DISCHARGETIME As %Library.TimeStamp [ SqlColumnNumber = 28, SqlFieldName = DISCHARGE_TIME ];
Property INHOSPITALTIME As %Library.TimeStamp [ SqlColumnNumber = 29, SqlFieldName = IN_HOSPITAL_TIME ];
Property ICDCODE As %Library.String(MAXLEN = 20) [ SqlColumnNumber = 30, SqlFieldName = ICD_CODE ];
Property ICDNAME As %Library.String(MAXLEN = 64) [ SqlColumnNumber = 31, SqlFieldName = ICD_NAME ];
Property HEALTHCARDNO As %Library.String(MAXLEN = 32) [ SqlColumnNumber = 32, SqlFieldName = HEALTH_CARD_NO ];
Property HEALTHCARDTYPE As %Library.String(MAXLEN = 64) [ SqlColumnNumber = 33, SqlFieldName = HEALTH_CARD_TYPE ];
Property SURGCODE As %Library.String(MAXLEN = 20) [ SqlColumnNumber = 34, SqlFieldName = SURG_CODE ];
Property SURGNAME As %Library.String(MAXLEN = 64) [ SqlColumnNumber = 35, SqlFieldName = SURG_NAME ];
Property AGE As %Library.String(MAXLEN = 10) [ SqlColumnNumber = 36 ];
Property DISEASECODE As %Library.Integer(MAXVAL = 2147483647, MINVAL = -2147483648) [ SqlColumnNumber = 37, SqlFieldName = DISEASE_CODE ];
Property DISEASENAME As %Library.String(MAXLEN = 64) [ SqlColumnNumber = 38, SqlFieldName = DISEASE_NAME ];
Property LastChangedTime As %Library.TimeStamp [ SqlColumnNumber = 39 ];
Property LastCreateTime As %Library.TimeStamp [ SqlColumnNumber = 40 ];
Property GROUPORG As %Library.String(MAXLEN = 50) [ SqlColumnNumber = 41 ];
Parameter USEEXTENTSET = 1;
/// Bitmap Extent Index auto-generated by DDL CREATE TABLE statement.  Do not edit the SqlName of this index.
Index DDLBEIndex [ Extent, SqlName = "%%DDLBEIndex", Type = bitmap ];
Index IdxMapOrg On HQORGCODE [ SqlName = IdxMapOrg, Type = index ];
Index IdxVisitorg On (VISITSERIALNO, HQORGCODE) [ SqlName = IdxVisitorg, Type = index ];
}

Hi Stefan,

If I change

select distinct by (VISIT_SERIAL_NO,HQ_ORG_CODE) VISIT_SERIAL_NO,HQ_ORG_CODE

into select distinct VISIT_SERIAL_NO,HQ_ORG_CODE,

The sum number is quite different

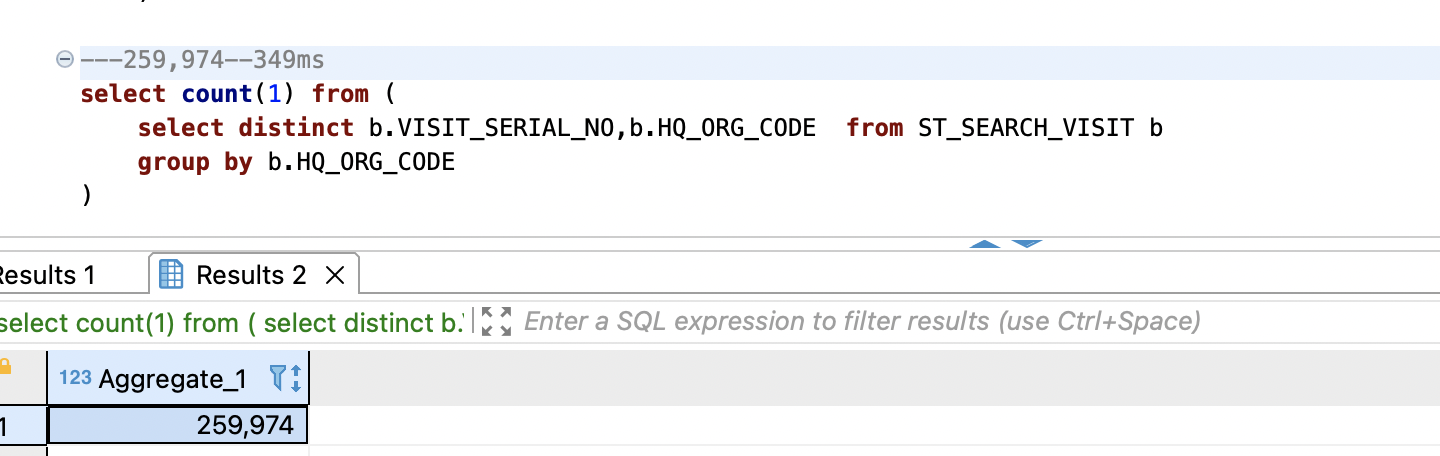

actually the second sql is equal to

it seems to be caused by the group by clause on a bitmap index, if I remove it, the result is then consistent

I tuned the table and rebuild the indices but the result is the same.

The followings are the query plans

Hi Mr. Zhou

As David already explained, license consumption will be increased dramatically once the threshold of 25 connections per user is exceeded. I.e, if there are 26 connections from one user account, 26 license units are used, instead of one, to handle that.

Thus if the web application is widely used by a group of users, it might be useful to investigate why the one or two users used more than 25 connections. It may be caused by:

1. Wrong handling of web sessions from the web application. If it does not release or reuse previous sessions and keep creating new connections to the server in a short period, it may consume the license units quickly.

2. If 25 connections are not enough to handle all request. The application may need more Cache accounts to connect to the serve.

Oh, missed one line of code.

Set confItem = ##Class(Ens.Config.Item).%OpenId(itemId)
    Do prodConf.RemoveItem(confItem)
    Set tSC = ##class(EnsPortal.Template.prodConfigSCPage).CallProductionUpdateAndSaveToClass(prodConf,"","SaveProduction")
    Quit:$$$ISERR(tSC) tSC
    Set tSC = ##class(Ens.Director).UpdateProduction()
    Quit:$$$ISERR(tSC) tSC
    Quit tSC

Just add

Set tSC = ##class(EnsPortal.Template.prodConfigSCPage).CallProductionUpdateAndSaveToClass(prodConf,"","SaveProduction")

Now it's working

Hi Sai,

From the error log you attached before:

ERROR <Ens>ErrTCPReadBlockSize: TCP Read(32000) with timeout period (5) failed with : (1144):l version="1.0" encoding="UTF-8"?> Wsma2Message xmlns:ns1="urn:hl7-org:v3" ......

It seems to me it was very likely the sender and receiver are using different Charset or Endian settings (These settings are used by counted block transferring through TCP) thus the receiver can not retrieve the XML String from the bytes in the stream.
Would you mind to check whether your BO and BS are referring to the same Charset and Endian settings?

Hi Kevin,

I think it is better if we refine the requirement for some details so that we can refer to a set of configurations to achieve what you want.

1. The user can only visit specific DBs instead of all DBs.  Therefore, we will use specific resource to protect specific DB.


2. The user can use SQL from third party tools to visit the DBs through ODBC and JDBC connections, therefore, he need not only DB access but also specific SQL privileges.


Reference:https://docs.intersystems.com/irisforhealthlatest/csp/docbook/Doc.View.c...

We can make the user a READONLY one by assigning only Select SQL privilege to him.
We can also use portal to define the privileges:

3. If the user can only use SQL and should not use portal to visit IRIS, the simplest way is not to assign roles such as %Operator, %Manager to the user, he then can only visit portal but can not use menus to perform action and we will Never refer to %All from a user expected to have limited previleges.
