I wrote a script that calculate database fragmentation level (between 0 and 100%). The idea is to fetch all blocks, to find which global they belongs to, and then count how many segments exists (one sequence being a set of consecutive blocks belonging to same global (eg: in AAAADDBBAACCC there is 5 segments). It's based on Dmitry BlocksExplorer open source project. The formula is as such :

Fragmentation % = (TotalSegments - GlobalCount) / (TotalBlocks - GlobalCount)
Blocks Formula Fragmentation
AAAAAACCBBDD (best) (4-4) / (13-4) 0%
AAAADDBBAACCC  (5-4) / (13-4) 11%
ACADDAABBAACC (8-4) / (13-4) 44%
ACABADADBACAC (worst) (13-4) / (13-4) 100%
    ///usage: do ..ReadBlocks("D:\YOUR_DATABASE\")
    ClassMethod ReadBlocks(path As %String)
    {
        new $namespace
        znspace "%sys"
        //get total amount of blocks
        set db = ##class(SYS.Database).%OpenId(path)
        set totalblocks = db.Blocks
        set db = ""
        set blockcount = 0
        open 63:"^^"_path
        set ^TEMP("DEFRAG", "NODES", 3)=$listbuild("", 0)
        while $data(^TEMP("DEFRAG", "NODES"))=10 //any childs
        {
            set blockId = ""
            for
            {
                set blockId = $order(^TEMP("DEFRAG", "NODES", blockId),1,node)
                quit:blockId=""
                kill ^TEMP("DEFRAG", "NODES", blockId)

                set globalname = $lg(node,1)
                set hasLong = $lg(node,2)

                do:blockId'=0 ..ReadBlock(blockId, globalname, hasLong, .totalblocks, .blockcount)
            }
        }
        close 63
        set ^TEMP("DEFRAG","PROGRESS") = "DONE"
        do ..CalculateFragmentation()
    }
    ClassMethod ReadBlock(blockId As %String, globalname As %String, hasLong As %Boolean, ByRef totalblocks As %Integer, ByRef blockcount As %Integer)
    {
        view blockId
        set blockType=$view(4,0,1)

        if blockType=8  //data block
        {
            if hasLong
            {
                for N=1:1
                {
                    set X=$VIEW(N*2,-6)
                    quit:X=""
                    set gdview=$ascii(X)
                    if $listfind($listbuild(5,7,3),gdview)
                    {
                        set cnt=$piece(X,",",2)
                        set blocks=$piece(X,",",4,*)
                        for i=1:1:cnt
                        {
                            set nextBlock=$piece(X,",",3+i)

                            set ^TEMP("DEFRAG","GLOBAL",nextBlock) = globalname
                            set blockcount = blockcount + 1 //update progress
                            set ^TEMP("DEFRAG","PROGRESS") = $number(blockcount / totalblocks * 100, 2)
                        }
                    }
                }
            }
        }
        else //block of pointers
        {
            if blockType = 9 //catalog
            {
                set nextglobal=$view(8,0,4)	//large catalogs might spawn on multiple blocks
                quit:$data(^TEMP("DEFRAG","GLOBAL",nextglobal))
                set:nextglobal'=0 ^TEMP("DEFRAG", "NODES", nextglobal) = $listbuild("",0) //next catalog
            }

            for N=1:1
            {
                set X=$VIEW(N-1*2+1,-6)
                quit:X=""
                set nextBlock=$VIEW(N*2,-5)
                if blockType=9 set globalname=X
                set haslong=0
                if $piece($view(N*2,-6),",",1)
                {
                    set haslong=1
                }

                continue:$data(^TEMP("DEFRAG","GLOBAL",nextBlock) )//already seen?
                set ^TEMP("DEFRAG", "NODES", nextBlock) = $listbuild(globalname,haslong)
                set ^TEMP("DEFRAG","GLOBAL",nextBlock) = globalname
                set blockcount = blockcount + 1
                set ^TEMP("DEFRAG","PROGRESS") = $number(blockcount / totalblocks * 100, 2)
            }
        }
    }
    ClassMethod CalculateFragmentation()
    {
        set segments = 0, blocks = 0, blocktypes = 0
        kill ^TEMP("DEFRAG", "UNIQUE")

        set previousglobal = ""
        set key = ""
        for
        {
            set key = $order(^TEMP("DEFRAG","GLOBAL",key),1,global)
            quit:key=""
            if global '= previousglobal
            {
                set previousglobal = global
                set segments = segments + 1
            }

            if '$data(^TEMP("DEFRAG", "UNIQUE", global))
            {
                set ^TEMP("DEFRAG", "UNIQUE", global)=""
                set blocktypes = blocktypes + 1
            }

            set blocks = blocks + 1
        }
        write $number((segments - blocktypes) / (blocks - blocktypes) * 100, 2)
    }

    Notes :

    • Use it at your own risks. It's not supposed to write anything in database (doing only read operations) but I'm unfamiliar with the VIEW command and it's possible caveats.
    • This might take a really long time to complete (several hours), especially if database is huge (TB in size). Progress can be checked by reading ^TEMP("DEFRAG","PROGRESS") node.

    I have checked your project and have extracted the logic of this function (almost 1:1 copy paste). It works for small databases (few GB in size). I can calculate a fragmentation percentage easily (by checking consecutive blocks of same globals). But for bigger databases (TB in size) it does not work as it only enumerate a small percentage of all globals. It seems the global catalog is quite big and split on multiple blocks (usually it's at block #3).

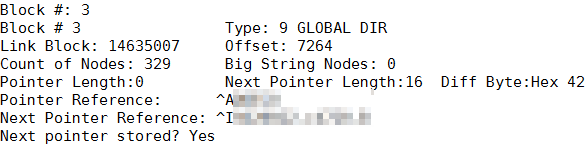

    EDIT : there is a "Link Block" pointer to follow :
