Robert Cemper · Jul 29, 2020 5m read

SQL for ^ERROR Global

This is a coding example working on Caché 2018.1.3 and IRIS 2020.2
It will not be kept in sync with new versions
It is also NOT serviced by InterSystems Support !

Standard error logs in IRIS / Caché / Ensemble are written global ^ERRORS.
As this piece dates back some decades back to previous millennium its structure
is far from the typical SQL storage structures.
The global is written by routine ^ and the content becomes visible from
terminal command line by routine ^%ERN or in Mgmt Portal as Application Error Log.

It is just not available to SQL as there is no Class wrapped around.
For several reasons:

  • When it was designed it was good practice to have index like structures in the same globals as the data. If I say 'like', this means it is of no use for SQL.
  • As next the content of objects are going to deeper levels than the rest. As a consequence, the depth of subscripts (typically IdKey) varies from 3 to 11.

^ERRORS is independent in every namespace
It is structured by Day,SequenceByDay, Type, ItemName (Variable, OREF),Value
zrcc.ERRORStack covers this as SQL table.
Deeper content of the objects becomes visible by the included custom query.
The SQL procedure zrcc.ERRORStack_Dump(Day,Sequence) returns all available
content and presents subscripts and values as you see in global listing.

How to make best use of both components:

First:  find your day and sequence number using SQL

Example: SELECT * FROM zrcc.ERRORStack where item='$ZE'

    Day	 Seq	Stk Type	Item	Value
2020-07-02	1	 0	   V	  $ZE	<WRITE>zSend+204^%Net.HttpRequest.1
2020-07-07	1	 0	   V	  $ZE	<WRITE>zSend+204^%Net.HttpRequest.1
2020-07-15	1	 0	   V	  $ZE	<WRITE>zSend+204^%Net.HttpRequest.1
2020-07-20	1	 0	   V	  $ZE	<LOG ENTRY>
2020-07-26	1	 0	   V	  $ZE	<WRITE>zSend+204^%Net.HttpRequest.1

Then in SQL:     CALL zrcc.ERRORStack_Dump('2020-07-26',1)

Row count: 541 Performance: 0.026 seconds  6557 global references
Ref	                                Value

2020-07-26,1,"*STACK",0,"V","Routine")	zSend+204^%Net.HttpRequest.1
2020-07-26,1,"*STACK",1,"I")	1^S^^^0^
2020-07-26,1,"*STACK",1,"L")	1 SIGN ON
2020-07-26,1,"*STACK",1,"T")	SIGN ON
2020-07-26,1,"*STACK",1,"V","%dsTrackingKeys","N","""Analyzer""")	6
2020-07-26,1,"*STACK",1,"V","%dsTrackingKeys","N","""Architect""")	7
2020-07-26,1,"*STACK",1,"V","%dsTrackingKeys","N","""DashboardViewer""")	8
2020-07-26,1,"*STACK",1,"V","%dsTrackingKeys","N","""ResultSet""")	9
2020-07-26,1,"*STACK",1,"V","%objcn")	2
2020-07-26,1,"*STACK",3,"V","Task")	<OBJECT REFERENCE>[1@%SYS.Task]
2020-07-26,1,"*STACK",3,"V","Task","OREF",1)	142
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,0)	3671
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,1)	+----------------- general information ---------------
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,2)	| oref value: 1
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,3)	| class name: %SYS.Task
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,4)	| %%OID: $lb("13","%SYS.Task")
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,5)	| reference count: 5
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,6)	+----------------- attribute values ------------------
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,7)	| %Concurrency =
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,8)	4 <Set>
- - -
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,53)	| EmailOutput =
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,54)	0
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,55)	| EndDate =
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,56)	""
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,57)	| Error =
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,58)	"<WRITE>zSend+204^%Net.HttpRequest.1"
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,59)	| Expires =
- - -
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,111)	| Status =
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,112)	"0 "_$lb($lb(5002,"POST to Server Failed",,,,,,,,$lb(,"%SYS",$lb("$^zSend+204^%Net.HttpRequest.1 +1","$^zPost+1^%Net.HttpRequest.1 +1","$^zSendData+20^FT.Collector.1 +1","$^zTransfer+12^FT.Collector.1 +1","$^zOnTask+3^%SYS.Task.FeatureTracker.1 +1","D^zRunTask+74^%SYS.TaskSuper.1 +1","$^zRunTask+54^%SYS.TaskSuper.1 +1","D^zRun+26^%SYS.TaskSuper.1 +1"))),$lb(6085,"ISC.FeatureTracker.SSL.Config","SSL/TLS error in SSL_connect(), SSL_ERROR_SSL: protocol error, error:14090086:SSL routines:ssl3_get_server_certificate:certificate verify failed",,,,,,,$lb(,"%SYS",$lb("e^zSend+303^%Net.HttpRequest.1^1","e^zPost+1^%Net.HttpRequest.1^1","e^zSendData+20^FT.Collector.1^1","e^zTransfer+12^FT.Collector.1^1","e^zOnTask+3^%SYS.Task.FeatureTracker.1^1","e^zRunTask+74^%SYS.TaskSuper.1^1","d^zRunTask+54^%SYS.TaskSuper.1^1","e^zRun+26^%SYS.TaskSuper.1^1","d^^^0"))))/* ERROR #5002: Cache error: POST to Server Failed- ERROR #6085: Unable to write to socket with SSL/TLS configuration 'ISC.FeatureTracker.SSL.Config', error reported 'SSL/TLS error in SSL_connect(), SSL_ERROR_SSL: protocol error, error:14090086:SSL routines:ssl3_get_server_certificate:certificate verify failed' */
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,113)	| SuspendOnError =
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,114)	0
2020-07-26,1,"*STACK",3,"V","Task","OREF",1,115)	| Suspended =
- - -
2020-07-26,1,"*STACK",6,"V","Status1")	1
2020-07-26,1,"*STACK",6,"V","Task")	<OBJECT REFERENCE>[1@%SYS.Task]
2020-07-26,1,"*STACK",6,"V","Task","OREF",1)	142
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,0)	3671
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,1)	+----------------- general information ---------------
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,2)	| oref value: 1
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,3)	| class name: %SYS.Task
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,4)	| %%OID: $lb("13","%SYS.Task")
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,5)	| reference count: 5
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,6)	+----------------- attribute values ------------------
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,7)	| %Concurrency =
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,8)	4 <Set>
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,9)	| DailyEndTime =
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,10)	0
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,11)	| DailyFrequency =
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,12)	0
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,13)	| DailyFrequencyTime =
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,14)	""
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,15)	| DailyIncrement =
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,16)	""
2020-07-26,1,"*STACK",6,"V","Task","OREF",1,17)	| DailyStartTime =
- - -
2020-07-26,1,"*STACK",12,"V","%00000","N","""JournalState""")	12
2020-07-26,1,"*STACK",13,"I")	13^Z^ETNERRB^%ETN^0
2020-07-26,1,"*STACK",13,"L")	13 ERROR TRAP S $ZTRAP="ETNERRB^%ETN"
2020-07-26,1,"*STACK",13,"S")	S $ZTRAP="ETNERRB^%ETN"
2020-07-26,1,"*STACK",13,"T")	ERROR TRAP

541 row(s) affected
2 1 15 249



Link to OpenExchange does not work.


How to generate errors to test the module?

I mean what is the simplest snippet which generates errors to ^ERRORS?

set $ZE="<ANERROR>" do BACK^%ETN

@Evgeny Shvarov
%ETN typically stops your job.  set $ZT="^%ETN"
If you use LOG^%ETN it writes to ^ERRORS and continues the job.
this is highly comfortable to be used in try {....} catch error { do LOG^%ETN }
more details to be found in ^ (easy to read)

BACK^%ETN doesn't stop your job, we use it often for debugging.

I have 75 rows per error in this table.

Is it possible to have one line per error - like a summary table ERRORS_SUMMARY, link to this details table? And the summary will have only:

reference, date,type(SYNTAX, UNDEFINED,etc),line of code,$ZV

  @Evgeny Shvarov

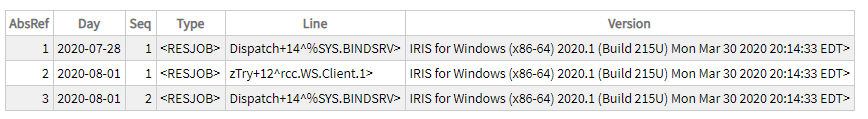

     Are you looking for something like this ?

this is the related query:

select %vid AbsRef
    , TO_CHAR(Day,'YYYY-MM-DD')  Day
    , Seq
    , $PIECE($PIECE(p,'$ZE=',2),'>',1)||'>' Type
    , $PIECE($PIECE(p,'>',2),',$ZV',1)||'>' Line
    , $PIECE(p,'$ZV=',2)||'>' Version
 from (
       day, seq, LIST(item||'='||value) p
       FROM zrcc.ERRORStack
       WHERE Stacklevel=0
       AND item IN ('$ZE','$ZV')
       GROUP BY day,seq


This is better! But still 2 lines per error. Is it possible to have one per error?

Thanks @Evgeny Shvarov  for checking !
the clause item IN ('$ZE','$ZV') catches the same set of records twice.
image + fix in the original reply
