Create an IRIS Interoperability Production from Swagger

Hi Community,

OpenAPI-Client Gen has just released, this is an application to create an IRIS Interoperability Production client from Swagger 2.0 specification.

Instead of the existing tool ^%REST that creates a server-side REST application, OpenAPI-Client Gen creates a complete REST Interoperability Production client template.



Install by ZPM:

zpm "install openapi-client-gen"


How to generate production from Swagger document?

It's very simple.

Open a terminal and execute:

Set sc = ##class(dc.openapi.client.Spec).generateApp(<applicationName>, <Your Swagger 2.0 document>>)


The first argument is the target package where production classes will be generated. It must be a valid and non-existing package name.
The second one, the Swagger document. These values are accepted :

1) File path.
2) %DynamicObject.
3) URL.

The specification must be in JSON format.

If your specification uses YAML format, It can be easily converted to JSON with online tools such as onlineyamltools.com

Example :

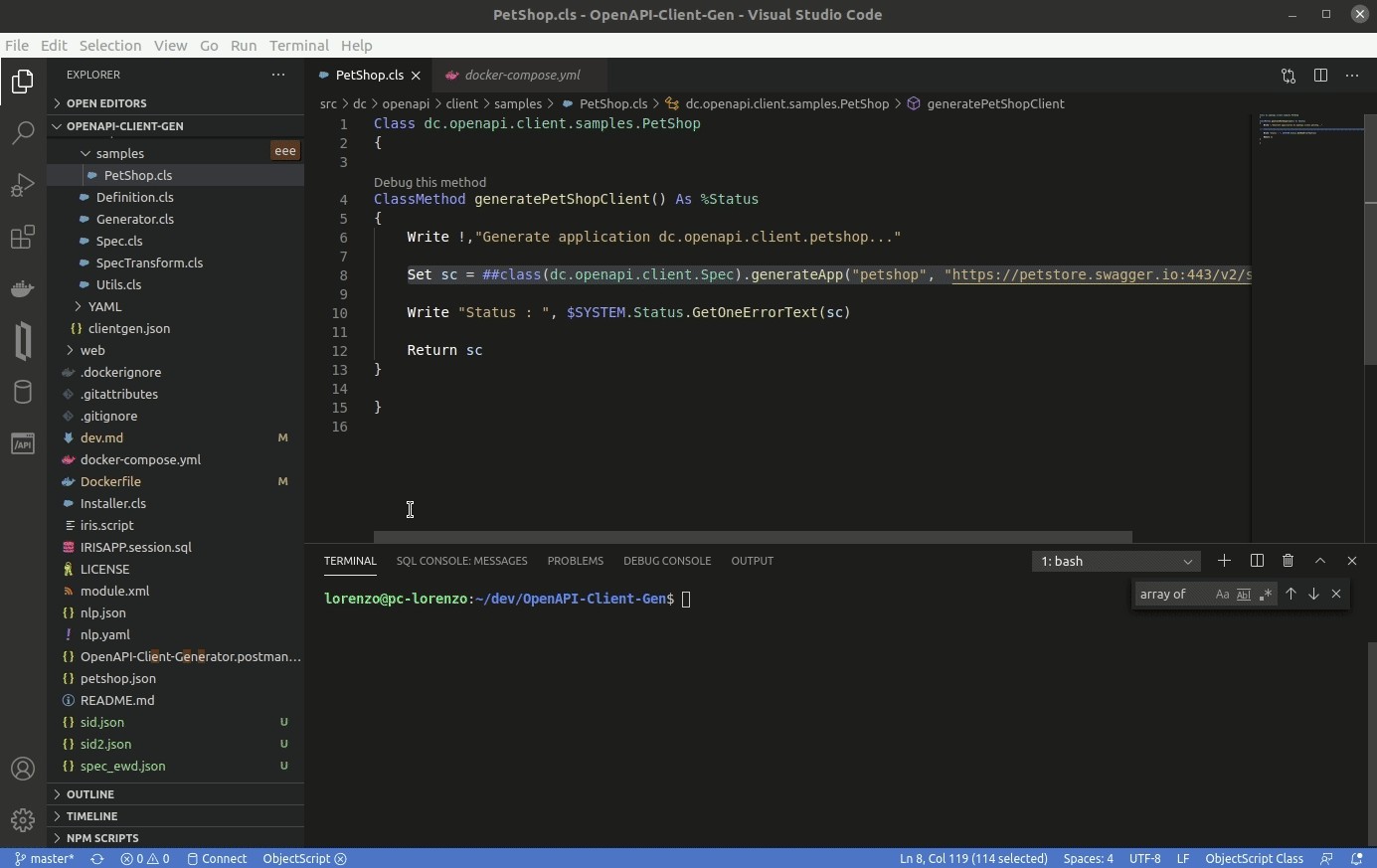

Set sc = ##class(dc.openapi.client.Spec).generateApp("petshop", "https://petstore.swagger.io:443/v2/swagger.json")
Write "Status : ", $SYSTEM.Status.GetOneErrorText(sc)


Take a look at the generated code, we can see a lot of classes, split into many sub-packages :

- Business Service: petshop.bs
- Business Operation : petshop.bo
- Business Process: petshop.bp
- REST Proxy application: petshop.rest
- Ens.Request and Ens.Response: petshop.msg
- Parsed input or output object: petshop.model.Definition
- Production configuration class: petshop.Production




Business Operation class

For each service defined in the Swagger document, there is a related method named by <VERB><ServiceId>.

Deep dive in a simple generated method GETgetPetById


/// Returns a single pet
Method GETgetPetById(pRequest As petshop.msg.getPetByIdRequest, pResponse As petshop.msg.GenericResponse) As %Status
{
    Set sc = $$$OK, pURL = "/v2/pet/{petId}"
    Set pHttpRequestIn = ..GetRequest(pRequest)
    Set pHttpRequestIn.ContentType = pRequest.consume
    Set pURL = $Replace(pURL, "{petId}", pRequest.pathpetId)
    $$$QuitOnError(..Adapter.SendFormDataArray(.pHttpResponse, "get", pHttpRequestIn , , , pURL))
    Set pResponse = ##class(petshop.msg.GenericResponse).%New()
    Set sc = ..genericProcessResponse(pRequest, pResponse, "GETgetPetById", sc, $Get(pHttpResponse),"petshop.msg.getPetByIdResponse")
    Return sc
}


* Firstly, the %Net.HttpRequest object is ever created by the GetRequest method, feel free to editfor adding some headers if needed.
* Secondly, HttpRequest object's filled using pRequest petshop.msg.getPetByIdRequest' (Ens.Request subclass).
* Thirdly,
EnsLib.HTTP.OutboundAdapteris used to send http request.
* And finally there is a generic response processing by
genericProcessResponse` method :

Method genericProcessResponse(pRequest As Ens.Request, pResponse As petshop.msg.GenericResponse, caller As %String, status As %Status, pHttpResponse As %Net.HttpResponse, parsedResponseClassName As %String) As %Status
{
    Set sc = $$$OK
    Set pResponse.operation = caller
    Set pResponse.operationStatusText = $SYSTEM.Status.GetOneErrorText(status)
    If $Isobject(pHttpResponse) {
        Set pResponse.httpStatusCode = pHttpResponse.StatusCode
        Do pResponse.body.CopyFrom(pHttpResponse.Data)
        Set key = ""
        For  {
            Set key = $Order(pHttpResponse.Headers(key),1 , headerValue)
            Quit:key=""
            Do pResponse.headers.SetAt(headerValue, key)
        }
        Set sc = ##class(petshop.Utils).processParsedResponse(pHttpResponse, parsedResponseClassName, caller, pRequest, pResponse)
    }
    Return sc
}


So, we can analyze a little bit more complex method POSTuploadFile

Method POSTuploadFile(pRequest As petshop.msg.uploadFileRequest, pResponse As petshop.msg.GenericResponse) As %Status
{
    Set sc = $$$OK, pURL = "/v2/pet/{petId}/uploadImage"
    Set pHttpRequestIn = ..GetRequest(pRequest)
    Set pHttpRequestIn.ContentType = pRequest.consume
    Set pURL = $Replace(pURL, "{petId}", pRequest.pathpetId)
    If pHttpRequestIn.ContentType = "multipart/form-data" {
        Set valueStream = ##class(%Stream.GlobalBinary).%New()
        Do:$Isobject(pRequest.formDataadditionalMetadata) valueStream.CopyFrom(pRequest.formDataadditionalMetadata)
        Do:'$Isobject(pRequest.formDataadditionalMetadata) valueStream.Write($Zcvt(pRequest.formDataadditionalMetadata,"I","UTF8"))
        Set:'$ISOBJECT($Get(mParts)) mParts = ##class(%Net.MIMEPart).%New()
        Set mimePart = ##class(%Net.MIMEPart).%New(valueStream)
        Do mimePart.SetHeader("Content-Disposition", "form-data; name=""additionalMetadata""; filename=""additionalMetadata""")
        Do mParts.Parts.Insert(mimePart)
    } Else {
        Do pHttpRequestIn.InsertFormData("additionalMetadata", pRequest.formDataadditionalMetadata)
    }
    If pHttpRequestIn.ContentType = "multipart/form-data" {
        Set valueStream = ##class(%Stream.GlobalBinary).%New()
        Do:$Isobject(pRequest.formDatafile) valueStream.CopyFrom(pRequest.formDatafile)
        Do:'$Isobject(pRequest.formDatafile) valueStream.Write($Zcvt(pRequest.formDatafile,"I","UTF8"))
        Set:'$ISOBJECT($Get(mParts)) mParts = ##class(%Net.MIMEPart).%New()
        Set mimePart = ##class(%Net.MIMEPart).%New(valueStream)
        Do mimePart.SetHeader("Content-Disposition", "form-data; name=""file""; filename=""file""")
        Do mParts.Parts.Insert(mimePart)
    } Else {
        Do pHttpRequestIn.InsertFormData("file", pRequest.formDatafile)
    }
    If $ISOBJECT($Get(mParts)) {
        Set mimeWriter = ##class(%Net.MIMEWriter).%New()
        Do mimeWriter.OutputToStream(.stream)
        Do mimeWriter.WriteMIMEBody(mParts)
        Set pHttpRequestIn.EntityBody = stream
        Set pHttpRequestIn.ContentType = "multipart/form-data; boundary=" _ mParts.Boundary
    }
    $$$QuitOnError(..Adapter.SendFormDataArray(.pHttpResponse, "post", pHttpRequestIn , , , pURL))
    Set pResponse = ##class(petshop.msg.GenericResponse).%New()
    Set sc = ..genericProcessResponse(pRequest, pResponse, "POSTuploadFile", sc, $Get(pHttpResponse),"petshop.msg.uploadFileResponse")
    Return sc
}


As you can see, It's exactly the same logic: GetRequest, filling %Net.HttpRequest, send request, generic response processing.


Proxy REST class

A proxy REST application is also generated.
This REST class uses a Projection to create automatically the related web application (ex : "/petshoprest", see petshop.rest.REST and petshop.rest.Projection).

This proxy REST create Ens.Request message and push it to the Business.Process.

Class petshop.rest.REST Extends %CSP.REST [ ProcedureBlock ]
{

Projection WebApp As petshop.rest.Projection;

...

ClassMethod POSTaddPet() As %Status
{
    Set ensRequest = ##class(petshop.msg.addPetRequest).%New()
    Set ensRequest.consume = %request.ContentType
    Set ensRequest.accept = $Get(%request.CgiEnvs("HTTP_ACCEPT"),"*/*")
    Set ensRequest.bodybody = ##class(petshop.model.Definition.Pet).%New()
    Do ensRequest.bodybody.%JSONImport(%request.Content)
    Return ##class(petshop.Utils).invokeHostAsync("petshop.bp.Process", ensRequest, "petshop.bs.ProxyService")
}

ClassMethod GETgetPetById(petId As %String) As %Status
{
    Set ensRequest = ##class(petshop.msg.getPetByIdRequest).%New()
    Set ensRequest.consume = %request.ContentType
    Set ensRequest.accept = $Get(%request.CgiEnvs("HTTP_ACCEPT"),"*/*")
    Set ensRequest.pathpetId = petId
    Return ##class(petshop.Utils).invokeHostAsync("petshop.bp.Process", ensRequest, "petshop.bs.ProxyService")
}
...
ClassMethod POSTuploadFile(petId As %String) As %Status
{
    Set ensRequest = ##class(petshop.msg.uploadFileRequest).%New()
    Set ensRequest.consume = %request.ContentType
    Set ensRequest.accept = $Get(%request.CgiEnvs("HTTP_ACCEPT"),"*/*")
    Set ensRequest.pathpetId = petId
    Set ensRequest.formDataadditionalMetadata = $Get(%request.Data("additionalMetadata",1))
    set mime = %request.GetMimeData("file")
    Do:$Isobject(mime) ensRequest.formDatafile.CopyFrom(mime)
    Return ##class(petshop.Utils).invokeHostAsync("petshop.bp.Process", ensRequest, "petshop.bs.ProxyService")
}
...
}


So let's try the production with this REST proxy.


Open and start petshop.Production



Create a pet


Change with your port number if needed:

curl --location --request POST 'http://localhost:52795/petshoprest/pet' \
--header 'Content-Type: application/json' \
--data-raw '{
  "category": {
    "id": 0,
    "name": "string"
  },
  "id" : 456789,
  "name": "Kitty_Galore",
  "photoUrls": [
    "string"
  ],
  "tags": [
    {
      "id": 0,
      "name": "string"
    }
  ],
  "status": "available"
}'


The production runs in async mode, so the rest proxy application does not wait for the response.
This behavior could be edited, but usually, Interoperability production uses async mode.

See the result in message viewer and visual trace

EDIT : since version 1.1.0 Rest Proxy application works in sync mode



If everything is fine, we can observ an http status code 200. As you can see, we receive a body response and it's not parsed.

What does it mean?
It occurs when it's not application/json response or the Swagger specification response 200 isn't filled.
In this case, response 200 is not filled.


Get a pet


Now, try to get the created pet:

curl --location --request GET 'http://localhost:52795/petshoprest/pet/456789'


Check the visual trace :



This time, this is an application/json response (response 200 is completed in Swagger spec.).
We can see a parsed response object.


REST API - Generate And Download

Also, this tool can be hosted on a server to allow users to generate and download code.

A REST API and a basic form are available :

* REST API web application : /swaggerclientgen/api
* Basic form: http://localhost:52795/csp/swaggerclientgen/dc.openapi.client.api.cspdem...

The generator is available online on my cloud server here.


In this case, the code is simply generated without compiling, exported, and then everything is deleted.
This feature could be useful for tools centralization.

See the README.md for up-to-date infos.


Thanks for reading.
