BPL and Workflow - check/authorisation of HL7 Message

#HL7 #Ensemble

Hi Everyone,

I'm currently implementing an interface solution to send through data to community pharmacies here in the UK from our hospital PAS system. As part of this project i have created a BPL which calls a SQL operation to infiltrate our Data warehouse and add to the message - this is all done and working as i expect.

What I now need to implement is something through Workflow- the idea is the hospital pharmacy team wish to approve and authorise the message before it is sent onto the outbound operation, so i have set up the workflow, set up the actions to enable the pharmacist to approve / reject., and as part of that i have taken some of the fields within the HL7 message, set to context variables and then im able to pull those into the workflow task request as %Formfields and %formValues, which works great for single fields. This is then arranged via a custom form/ csp page.

What im wondering is if it is possible at all to "tabulate" a repeating HL7 segment (in this instance OBX) and then display that within the form e.g:

HL7 Message example (its all test data)

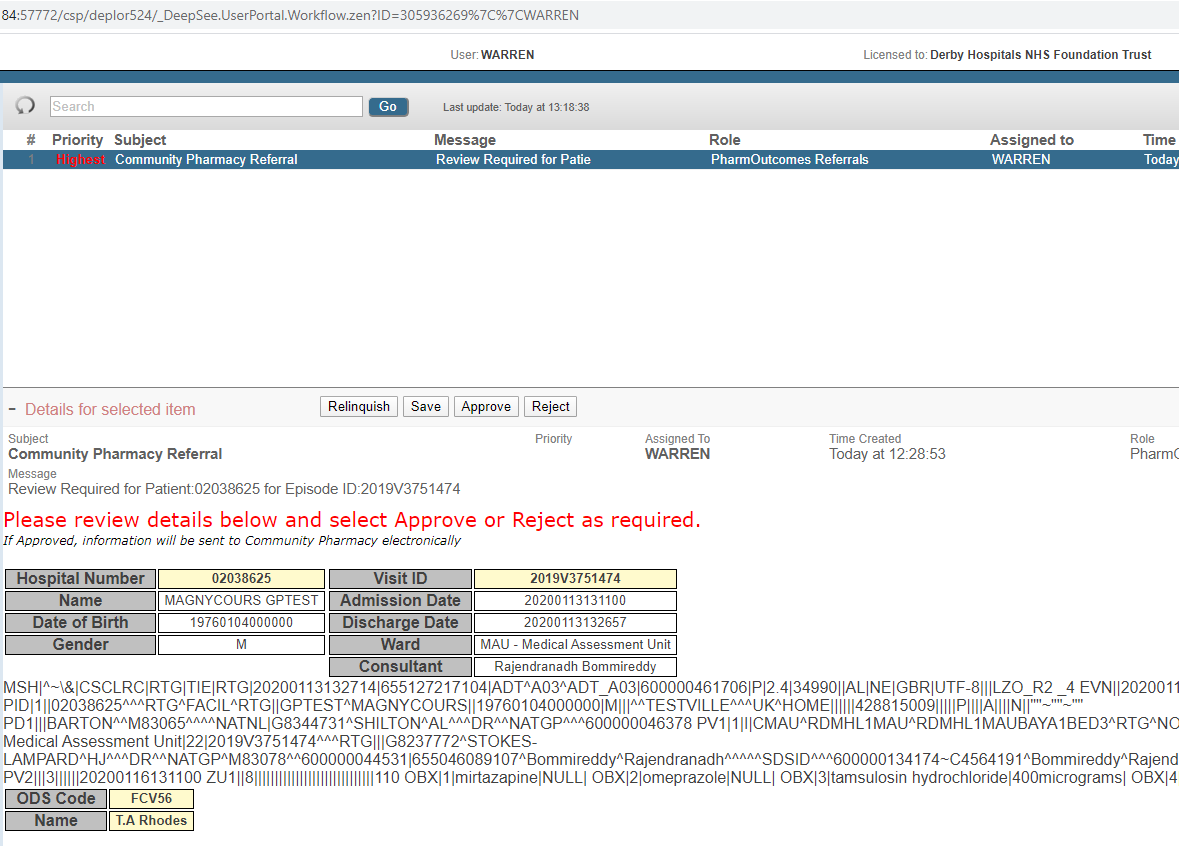

Custom workflow form: (note not finished so ordering all over the place, and just put the HL7 message into the form just so i could see it.)

Ive assigned the values within the custom form to context variables, and they can then be pulled into the form which works great

How (if possible) can i do similar with a repeating segment within the HL7 Message - can i "tabulate" that information and display it at all?

Open to suggestions of course- first time I've used BPL and workflow, certainly the first time workflow has been considered in our trust so not a lot of knowledge out there.

Thanks in advance - happy to give further detail where required.

Discussion (3)2
Log in or sign up to continue
Warren Baldock · Aug 18, 2020

Just to close this one, and to place thanks to Neerav for his help over LinkedIn with his valuable advice, and also the BPL and iterations.

I was able to do this by sending through the HL7 message as a context variable into the workflow task itself, and then (As i didnt realise you could script on a csp page), script within that to iterate over, and display as a table.  so the snippet of code on my csp page is as follows:

<script language="Cache" method="Medtable"
arguments="count:%Integer" returntype="%String">
      New i
   Write "<table class=""meds""><th colspan=""8"">Discharge Medication Details</th>",!
   Write "<tr><th>Medication</th><th>Strength</th><th>Form</th><th>Dose</th><th>Route</th><th>Frequency</th><th>Start Date</th><th>Stop Date</th></tr>"
   For i = 1:1:pHL7.GetValueAt("ORCgrp(*)") {
      Write "<tr><td>"_pHL7.GetValueAt("ORCgrp("_i_").RXD:2.2"),!,"</td><td>"_pHL7.GetValueAt("ORCgrp("_i_").RXD:4"),!,"</td><td></td><td></td><td>"_pHL7.GetValueAt("ORCgrp("_i_").RXR:1.2"),!,"</td><td></td><td></td><td></td></tr>"
   }
   Write "</table>",!
   Quit "" </script>
#(..Medtable())#

Which then displays as:

Thanks very much

Warren
