Build a Customer Support AI Agent with smolagents + InterSystems IRIS (SQL, RAG & Interoperability)

Customer support questions span structured data (orders, products 🗃️), unstructured knowledge (docs/FAQs 📚), and live systems (shipping updates 🚚). In this post we’ll ship a compact AI agent that handles all three—using:

• 🧠 Python + smolagents to orchestrate the agent’s “brain”
• 🧰 InterSystems IRIS for SQL, Vector Search (RAG), and Interoperability (a mock shipping status API)

⚡ TL;DR (snack-sized)

• Build a working AI Customer Support Agent with Python + smolagents orchestrating tools on InterSystems IRIS (SQL, Vector Search/RAG, Interoperability for a mock shipping API).
• It answers real questions (e.g., “Was order #1001 delivered?” “What’s the return window?”) by combining tables, documents, and interoperability calls.
• You’ll spin up IRIS in Docker, load schema and sample data, embed docs for RAG, register tools (SQL/RAG/API), and run the agent via CLI or Gradio UI.

---

🧭 What you’ll build

An AI Customer Support Agent that can:

• 🔎 Query structured data (customers, orders, products, shipments) via SQL
• 📚 Retrieve unstructured knowledge (FAQs & docs) via RAG on IRIS Vector Search
• 🔌 Call a (mock) shipping API via IRIS Interoperability, with Visual Trace to inspect every call

Architecture (at a glance)

User ➜ Agent (smolagents CodeAgent)
               ├─ SQL Tool ➜ IRIS tables
               ├─ RAG Tool ➜ IRIS Vector Search (embeddings + chunks)
               └─ Shipping Tool ➜ IRIS Interoperability (mock shipping) ➜ Visual Trace

New to smolagents? It’s a tiny agent framework from Hugging Face where the model plans and uses your tools—other alternatives are LangGraph and LlamaIndex.

---

🧱 Prerequisites

• 🐍 Python 3.9+
• 🐳 Docker to run IRIS in a container
• 🧑‍💻 VS Code handy to checkout the code
• 🔑 OpenAI API key for the LLM + embeddings — or run locally with Ollama if you prefer

---

1) 🧩 Clone & set up Python

git clone https://github.com/intersystems-ib/customer-support-agent-demo
cd customer-support-agent-demo

python -m venv .venv
# macOS/Linux
source .venv/bin/activate
# Windows (PowerShell)
# .venv\Scripts\Activate.ps1

pip install -r requirements.txt
cp .env.example .env   # add your OpenAI key

---

2) 🐳 Start InterSystems IRIS (Docker)

docker compose build
docker compose up -d

Open the Management Portal (http://localhost:52773 in this demo).

---

3) 🗃️ Load the structured data (SQL)

From SQL Explorer (Portal) or your favorite SQL client:

LOAD SQL FROM FILE '/app/iris/sql/schema.sql' DIALECT 'IRIS' DELIMITER ';';
LOAD SQL FROM FILE '/app/iris/sql/load_data.sql' DIALECT 'IRIS' DELIMITER ';';

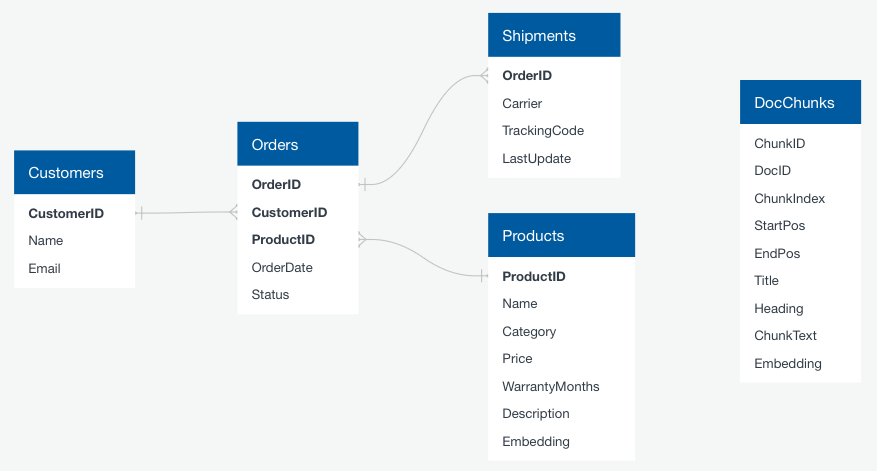

This is the schema you have just loaded:

Run some queries and get familiar with the data. The agent will use this data to resolve questions:

-- List customers
SELECT * FROM Agent_Data.Customers;

-- Orders for a given customer
SELECT o.OrderID, o.OrderDate, o.Status, p.Name AS Product
FROM Agent_Data.Orders o
JOIN Agent_Data.Products p ON o.ProductID = p.ProductID
WHERE o.CustomerID = 1;

-- Shipment info for an order
SELECT * FROM Agent_Data.Shipments WHERE OrderID = 1001;

✅ If you see rows, your structured side is ready.

---

4) 📚 Add unstructured knowledge with Vector Search (RAG)

Create an embedding config (example below uses an OpenAI embedding model—tweak to taste):

INSERT INTO %Embedding.Config
  (Name, Configuration, EmbeddingClass, VectorLength, Description)
VALUES
  ('my-openai-config',
   '{"apiKey":"YOUR_OPENAI_KEY","sslConfig":"llm_ssl","modelName":"text-embedding-3-small"}',
   '%Embedding.OpenAI',
   1536,
   'a small embedding model provided by OpenAI');

Need the exact steps and options? Check the documentation

Then embed the sample content:

python scripts/embed_sql.py

Check the embeddings are already in the tables:

SELECT COUNT(*) AS ProductChunks FROM Agent_Data.Products;
SELECT COUNT(*) AS DocChunks     FROM Agent_Data.DocChunks;

🔎 Bonus: Hybrid + vector search directly from SQL with EMBEDDING()

A major advantage of IRIS is that you can perform semantic (vector) search right inside SQL and mix it with classic filters—no extra microservices needed. The EMBEDDING() SQL function generates a vector on the fly for your query text, which you can compare against stored vectors using operations like VECTOR_DOT_PRODUCT.

Example A — Hybrid product search (price filter + semantic ranking):

SELECT TOP 3
    p.ProductID,
    p.Name,
    p.Category,
    p.Price,
    VECTOR_DOT_PRODUCT(p.Embedding, EMBEDDING('headphones with ANC', 'my-openai-config')) score
FROM Agent_Data.Products p
WHERE p.Price < 200
ORDER BY score DESC

Example B — Semantic doc-chunk lookup (great for feeding RAG answers):

SELECT TOP 3
    c.ChunkID  AS chunk_id,
    c.DocID      AS doc_id,
    c.Title         AS title,
    SUBSTRING(c.ChunkText, 1, 400) AS snippet,
    VECTOR_DOT_PRODUCT(c.Embedding, EMBEDDING('warranty coverage', 'my-openai-config')) AS score
FROM Agent_Data.DocChunks c
ORDER BY score DESC

Why this is powerful: you can pre-filter by price, category, language, tenant, dates, etc., and then rank by semantic similarity—all in one SQL statement.

---

5) 🔌 Wire a live (mock) shipping API with Interoperability

The project exposes a tiny /api/shipping/status endpoint through IRIS Interoperability—perfect to simulate “real world” calls:

curl -H "Content-Type: application/json" \
  -X POST \
  -d '{"orderStatus":"Processing","trackingNumber":"DHL7788"}' \
  http://localhost:52773/api/shipping/status

Now open Visual Trace in the Portal to watch the message flow hop-by-hop (it’s like airport radar for your integration ✈️).

---

6) 🤖 Meet the agent (smolagents + tools)

Peek at these files:

• agent/customer_support_agent.py — boots a CodeAgent and registers tools
• agent/tools/sql_tool.py — parameterized SQL helpers
• agent/tools/rag_tool.py — vector search + doc retrieval
• agent/tools/shipping_tool.py — calls the Interoperability endpoint

The CodeAgent plans with short code steps and calls your tools. You bring the tools; it brings the brains using a LLM model

---

7) ▶️ Run it!

One-shot (quick tests)

python -m cli.run --email alice@example.com --message "Where is my order #1001?"
python -m cli.run --email alice@example.com --message "Show electronics that are good for travel"
python -m cli.run --email alice@example.com --message "Was my headphones order delivered, and what’s the return window?"

Interactive CLI

python -m cli.run --email alice@example.com

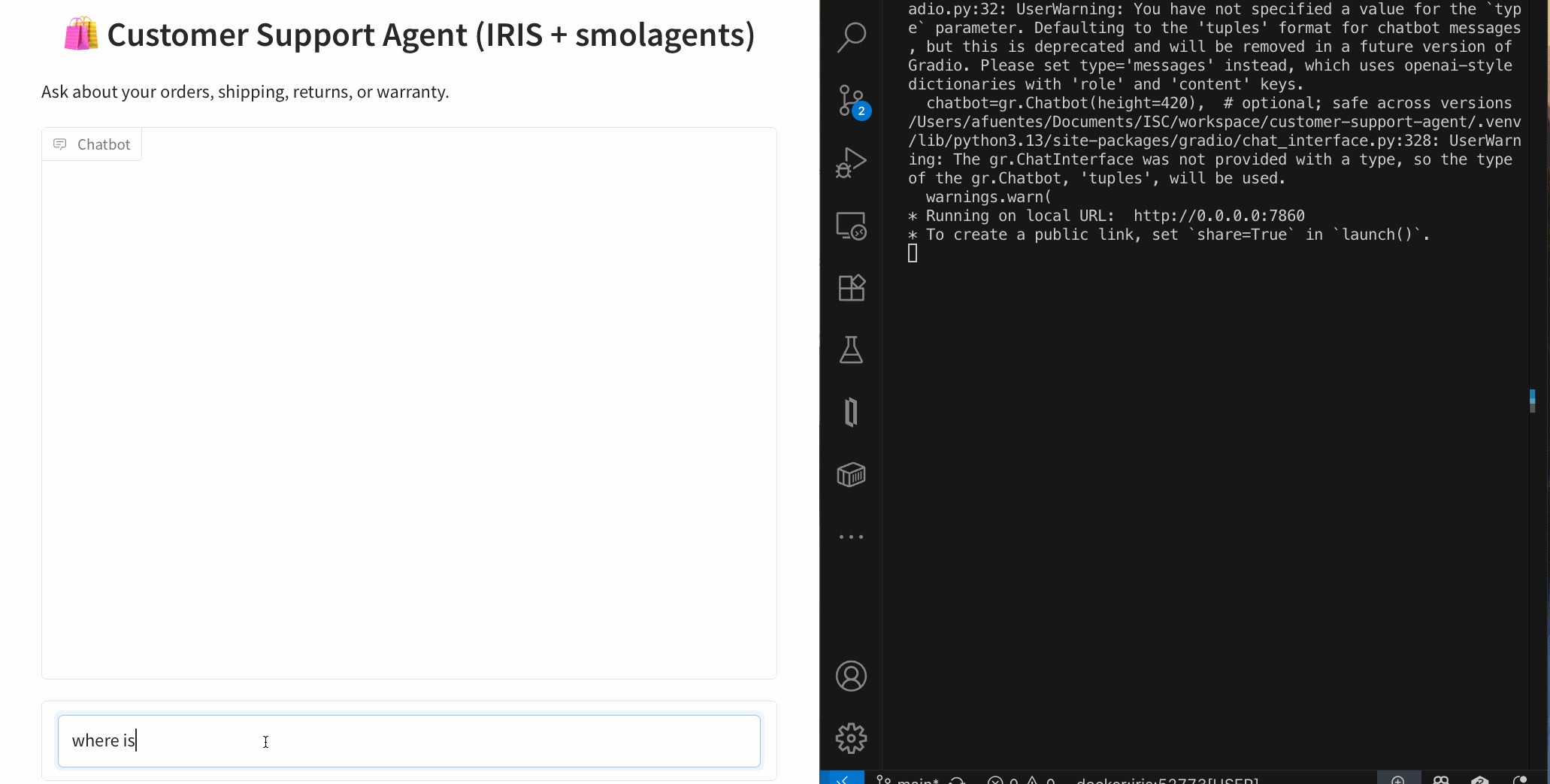

Web UI (Gradio)

python -m ui.gradio
# open http://localhost:7860

---

🛠️ Under the hood

The agent’s flow (simplified):

1. 🧭 Plan how to resolve the question and what available tools must be used: e.g., “check order status → fetch returns policy ”.

2. 🛤️ Call tools as needed

• 🗃️ SQL for customers/orders/products
• 📚 RAG over embeddings for FAQs/docs (and remember, you can prototype RAG right inside SQL using EMBEDDING() + vector ops as shown above)
• 🔌 Interoperability API for shipping status

3. 🧩 Synthesize: stitch results into a friendly, precise answer.

Add or swap tools as your use case grows: promotions, warranties, inventory, you name it.

---

🎁 Wrap-up

You now have a compact AI Customer Support Agent that blends:

• 🧠 LLM reasoning (smolagents CodeAgent)
• 🗃️ Structured data (IRIS SQL)
• 📚 Unstructured knowledge (IRIS Vector Search + RAG) — with the bonus that EMBEDDING() lets you do hybrid + vector search directly from SQL
• 🔌 Live system calls (IRIS Interoperability + Visual Trace)
