Saving data to Caché by using ODBC connection from Appeon PowerBuilder

In my previous articles I demonstrated the steps to connect and retrieve data from Caché from Appeon PowerBuilder by using ODBC.
In this article I will demonstrated how to Save data to Caché with Appeon PowerBuilder (https://www.appeon.com/products/powerbuilder) by using ODBC

I am using Company.cls from Samples-Data (https://github.com/intersystems/Samples-Data/tree/master/cls/Sample)

So Let's start:

Step 1 : First of all we need to establish a connection (https://community.intersystems.com/post/connecting-cach%C3%A9-appeon-pow...)

Step 2 : We need to create datawindow object which will link to Company class.

From File menu select New and select Freeform datawindow object from DataWindow Tab


Step 3 : Select SQL Select from data source list

Step 4 : Select sample.company from Tables list

Step 5 : Select desired columns from column list and press Return

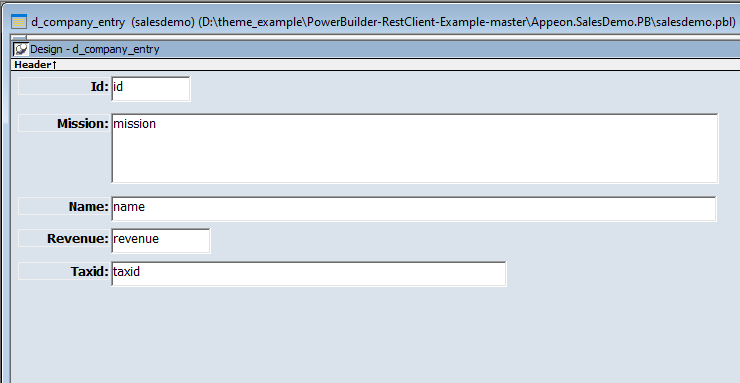

Step 6 : This will open a design view. Save the datawindow as d_company_entry after desired adjustments

Step 7 : Make sure to de-select id column from undated columns list and select id from Identity column list as id will be generated automatically from Caché

Step 8 : In the window control add datawindow object(d_company_entry) which we already created to datawindow control

Step 9 : Now we need to insert row in datawindow control by using datawindow control Insertrow(0) function

Step 10 : Add some data by using PowerBuilder datawindow control

Step 11 : Save data in datawindow control by using datawindow control update() function

That's it. ID 21 is added


Thanks
