Hello,



We would like help to know why our web service which gets Patient's ID number, does not accept messages?



We observe its Event Log, and it contains the following pattern:





We detail each log to give info to discover what's happening:

First there is a new connection:



Then it suddenly disconnects



After that it looks like the service restarts:

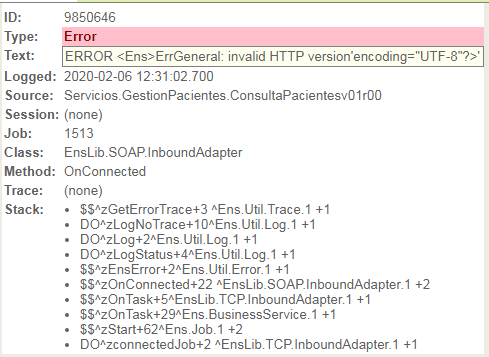

The next one is interesting: it outputs that UTF-8 encoding is invalid, inside EnsLib.SOAP.InboundAdapter

We have searched for UTF-8 inside SOAP.InboundAdaptar and we find it here:

Set tCT=$S(tCST:"binary/CST; charset=UTF-8", ""'=tCT:tCT, 0=tLen:"", tSOAP12:"application/soap+xml", 1:"text/xml")

After this, the following two logs are related with not having a TCP connection opened:


ERROR <Ens>ErrException: <UNDEFINED>zOnConnected+158 ^EnsLib.SOAP.InboundAdapter.1 *tSOAP12 -- - registrado como '-'
número - @'
Set:""=$G(tStreamOut)||($IsObject(tStreamOut)&&'tStreamOut.Size&&$S(tStreamOut.%Extends("%Library.AbstractStream"):'$D(tStreamOut.Attributes),1:1)) tStreamOut=..faultString(tSC,..BusinessHost,$S(tSOAP12:"1.2",1:"1.1"))'

Besides there is a new disconnection:


 TCP closes:

And it shows a new Error and Warning related to TCP connection:


ERROR <Ens>ErrException: <UNDEFINED>zOnConnected+158 ^EnsLib.SOAP.InboundAdapter.1 *tSOAP12 -- - registrado como '-'
número - @'
Set:""=$G(tStreamOut)||($IsObject(tStreamOut)&&'tStreamOut.Size&&$S(tStreamOut.%Extends("%Library.AbstractStream"):'$D(tStreamOut.Attributes),1:1)) tStreamOut=..faultString(tSC,..BusinessHost,$S(tSOAP12:"1.2",1:"1.1"))'



Terminating Job 1513 / 'Servicios.GestionPacientes.ConsultaPacientesv01r00'
with Status = ERROR <Ens>ErrException: <UNDEFINED>zOnConnected+158 ^EnsLib.SOAP.InboundAdapter.1 *tSOAP12 -- - registrado como '-'
número - @'
Set:""=$G(tStreamOut)||($IsObject(tStreamOut)&&'tStreamOut.Size&&$S(tStreamOut.%Extends("%Library.AbstractStream"):'$D(tStreamOut.Attributes),1:1)) tStreamOut=..faultString(tSC,..BusinessHost,$S(tSOAP12:"1.2",1:"1.1"))', %QuitTask=1



As we see it looks like there is something related to utf-8 encoding.

In addition our web service code is the following:

Class Servicios.GestionPacientes.ConsultaPacientesv01r00 Extends (EnsLib.SOAP.Service, ITB.HL7.BS.XMLService) [ ProcedureBlock ]
{

Parameter ADAPTER = "EnsLib.SOAP.InboundAdapter";

/// Nombre del WebService
Parameter SERVICENAME = "ConsultaPacientesv01r00";

/// Namespace SOAP para el Servicio Web
Parameter NAMESPACE = "http://Servicios/GestionPacientes";

/// Se utilizarán namespaces de clases referenciadas en WSDL
Parameter USECLASSNAMESPACES = 1;

/// Use xsi:type attribute for literal types.
Parameter OUTPUTTYPEATTRIBUTE = 0;

/// Determines handling of Security header.
Parameter SECURITYIN = "ALLOW";

/// This is the SOAP version supported by the service.
Parameter SOAPVERSION = 1.1;

/// Non-default elementFormQualified for types XML namespace.
Parameter ELEMENTQUALIFIED = 0;

ClassMethod IsServiceEnabled() As %Boolean
{
    #dim tSC as %Status
    #dim productionName as %String
    #dim productionStatus as %Integer
    set tSC= ##class(Ens.Director).GetProductionStatus(.productionName,.productionStatus)

    #dim config as Ens.Config.Production
    set config = ##class(Ens.Config.Production).%OpenId(productionName)
    #dim item as Ens.Config.Item
    set item=config.FindItemByConfigName(..%ClassName(1))

    quit item.Enabled
}

Method findCandidatesXML(mensEntrada As %XML.String) As %XML.String(XMLNAME="mensSalida") [ Final, ProcedureBlock = 1, SoapAction = "http://Servicios/GestionPacientes/findCandidatesXML", SoapBindingStyle = document, SoapBodyUse = literal, WebMethod ]
{
    #dim tSC as %Status
    if ('..IsServiceEnabled()){
        set tSC = $SYSTEM.Status.Error(60333,"Web Service Not Enabled")
        if $$$ISERR(tSC) do ..ReturnMethodStatusFault(tSC)
    }

     set pRequest = ##class(Mensajes.Request.GestionPacientes.GestionPacientesRequest).%New()
    set pPesponse = ##Class(Mensajes.Response.GestionPacientes.operacionResponse).%New()

    // string to stream
    set pInputStream = ##class(%Stream.GlobalCharacter).%New()
    do pInputStream.Write($zcvt(mensEntrada,"O","UTF8"))

    // convert incoming HL7 (xml) to ER7
    set tSC = ..StreamProcessInput(pInputStream,.ackCommit,1,0,.msgER7)
    if $$$ISERR(tSC) $$$ThrowStatus(tSC)

    set pRequest.mensaje = msgER7

    //proceso el mensaje
    set tSC = ..SendRequestAsync("EnrutadorConsultaPaciente",pRequest, .pPesponse)
    if $$$ISERR(tSC){ $$$TRACE("Error en la llamada al destino"_$system.Status.GetErrorText(tSC))}

    set mensSalida = ##class(%XML.String).%New()
    set mensSalida = ##class(ITB.HL7.Util.Convert).ER7ToXML(pPesponse)

    Quit mensSalida
}

Method findCandidatesER7(mensEntrada As %String) As %String(XMLNAME="mensSalida") [ Final, ProcedureBlock = 1, SoapAction = "http://SCS.Servicios/GestionPacientes/findCandidatesER7", SoapBindingStyle = document, SoapBodyUse = literal, WebMethod ]
{
    set mensajeHL7 = ##class(EnsLib.HL7.Message).ImportFromString(mensEntrada)

    //Establece DocType
    set tipo = mensajeHL7.GetValueAt("1:9.3")
    do mensajeHL7.DocTypeSet("2.5:"_tipo)
    do ..OnProcessInput(mensajeHL7, .pResponse)

    Quit pResponse.OutputToString()
}

Method OnProcessInput(pInput As Ens.Request, ByRef pOutput As Ens.Response) As %Status
{
    Quit ..SendRequestSync("EnrutadorConsultaPaciente",pInput,.pOutput)
}

ClassMethod OnGetConnections(Output pArray As %String, item As Ens.Config.Item)
{
  Set (tValue,tIndex)=""
  For {
    Set tIndex = item.Settings.Next(tIndex) Quit:tIndex=""
    Set tSetting = item.Settings.GetAt(tIndex)
    If (tSetting.Name="Target"){
    if tValue="" {
    Set tValue=tSetting.Value
}else{
    Set tValue=tValue_","_tSetting.Value
}
}
  }
  For i=1:1:$L(tValue,",") {
   Set tOne=$P(tValue,",",i)
   Continue:""=tOne
   Set pArray(tOne)=""
  }
  Quit
}

}



How could we debug this web service, in an effective way?



We have read:

Replies

 In addition we have tested sending an HL7 message from a test operation to the bussiness service, here is the example messag:

MSH|^~\&|7edit||7edit||20200210093324||QBP^Q21|MSG-20200210-093324-0270|P|2.5
QPD|MessageQueryName
RCP

Then, we see the following trace:


ERROR <Ens>ErrOutConnectionLost: Se ha perdido conexión HL7 Read con  - detectado mediante ERROR #5002: Error de cache: <READ>zReadLine+11^%IO.DeviceStream.1


So it looks like our service refuses to accept input HL7 messages.

In the Production we see it gets stucked:

And our service:

Shows no results:

Besides, we have checked our operation is referencing service's host and port:



How could we debug this bussiness service?

Have you checked:

  • on the service machine that the service is listening on the port, netstat -na | grep 19757
  • on the operation machine that it can access the service machine, ping 10.136.4.142
  • on the operation machine that it can connect to the service, telnet 10.136.4.142 19757

Regards,

Rupert
