How to Configure Email Alerting on HealthShare based on the conditions from the messages received.

Question

Question

Ephraim Malane · Jul 4, 2023

Hi Community,

Please give me an example on how to configure email alerting based on the rules and send out emails accrordingly.

As a message comes into the business service component I want to check specific fields and if a field for example active = true i want to send it to a different email and if active = false I want to send it to a different email as well.

Guide me on how to accomplish this requirement and let me know if InterSystems uses a default SMTP server or I must have that server in place.

Regards

Product version: IRIS 2020.2

Discussion (8)2

Log in or sign up to continue

Jeffrey Drumm · Jul 4, 2023

Not with this code, no. I interpreted your original request literally, assuming that you wanted to send the email directly from within a custom service.

If you wish to have an Email operation in the production that handles the delivery of messages from routing rules, that's a bit more work to create, but in the end more versatile and easier to support.

If you don't care about having an operation, you could create a class that extends Ens.Rule.FunctionSet that wraps the original class in such a way that you can send email from a rule:

Class User.Util.FunctionSet Extends Ens.Rule.FunctionSet
{
ClassMethod SendEmail(pToAddr As %String, pSubject As %String, pMessageBody As %String) As %Status
{
	Set tMail=##class(User.Mail).%New()
	Set tSC = tMail.Send(pToAddr, pSubject, pMessageBody)
}
}

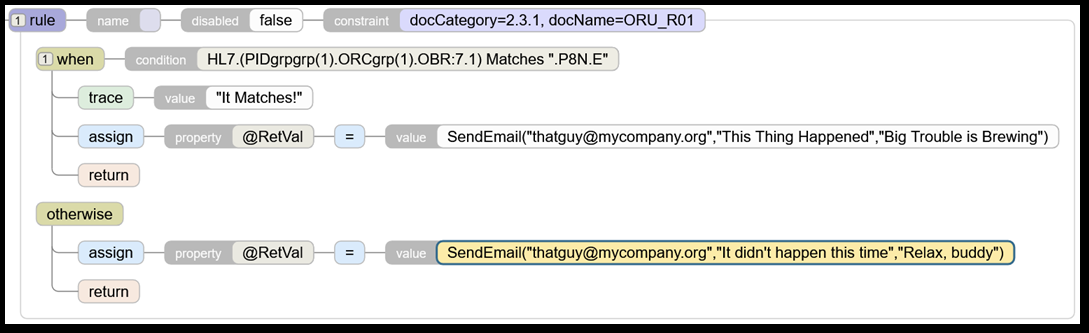

You could then call it from a rule (the assign simply lets you call it and optionally do something with the returned status):

2 0

score 1 · Answer 1 · 2023-07-04T11:06:22-04:00

Do you actually want the logic to check for the specific fields in the service itself? A Business Process with a rule can do this, and would be a bit more "analyst friendly."

Here's a very bare-bones method to send email from within a custom Business Service:

Class User.Mail Extends %RegisteredObject
{

Property MailServer As %String [ InitialExpression = "hostname@domainname" ];

Property FromAddress As %String [ InitialExpression = "fromaddress@domainname" ];

Property EmailCreds As %String [ InitialExpression = "SMTPServer" ];

Method Send(pToAddress As %String, pSubject As %String, pBody As %String = "") As %Status
{
    Set tEmail = ##class(%Net.SMTP).%New()
    If pEmailCreds '= ""
    {
        #dim tCred As Ens.Config.Credentials
        Set tSC = ##class(Ens.Config.Credentials).GetCredentialsObj(.tCred,$CLASSNAME(),"Ens.Config.Credentials",..EmailCreds)
        Return:$$$ISERR(tSC) tSC
        Set tAuth = ##class(%Net.Authenticator).%New()
        Set tAuth.UserName = tCred.Username
        Set tAuth.Password = tCred.PasswordGet()
        Set tEmail.authenticator = tAuth
    }
    Set tEmail.smtpserver = ..MailServer
    Set tEmail.timezone="LOCAL"
    Set tMsg = ##class(%Net.MailMessage).%New()
    Set tMsg.From = ..FromAddress
    Do tMsg.To.Insert(pToAddress)
    Set tMsg.Subject = pSubject
    Set tMsg.Charset = "utf-8"
    Do tMsg.TextData.Write(pBody)
    Return tEmail.Send(tMsg)
}

}

You can set the properties in the class to represent default values for your organization. Otherwise, you would call it like so:

	Set tMail=##class(User.Mail).%New()
	Set tMail.MailServer = "smtpserver.mydomain.com"
	Set tMail.FromAddress = "healthshare@mydomain.com"
	Set tMail.EmailCreds = "SMTPServer"
	Set tSC = tMail.Send("user@mydomain.com","This Thing Happened","And Here's what it is")

You will need to obtain access to an SMTP relay host; HealthShare does not supply one. There will also be adjustments required for the class if encryption is required, and if you need to supply credentials for authentication to the SMTP server, you will need to create a Credentials entry in the Management Console and supply its name for the EmailCreds property.

score 0 · Answer 2 · 2023-07-04T11:54:17-04:00

Thanks Jeffrey,

With the option of having a Business component with rules that will route to specific email addresses, can I create that Routing with rules pointing to the component that sends emails with this code?

score 0 · Answer 3 · 2023-07-05T05:03:15-04:00

Ephraim Malane · Jul 5, 2023

Thanks you so much Jeffrey,this helps a lot.

0 0

score 0 · Answer 4 · 2023-07-05T14:47:58-04:00

Hi Jeffrey,

I have obtained an SMTP server and it is from brevo.com which uses API key or SMTP key to authenticate. How do I modify that User.Mail class to use API key or SMTP key instead of username and password?

score 0 · Answer 5 · 2023-07-05T16:04:30-04:00

When you say "SMTP Key," are you referring to a User ID and Password? If yes, then create a Credentials entry in the production's namespace via the Management Console's Interoperability | Configure | Credentials menu item and supply the name of the credentials entry as the Credentials property in the User.Mail class.

If there's some other form of authentication required, I'm not sure what to tell you; %Net.SMTP supports only user id/password as far as I know.

The organization doesn't have an Exchange server or GSuite domain? Both can function as SMTP relays, and work with the InterSystems %Net.SMTP class.

score 0 · Answer 6 · 2023-07-05T17:59:05-04:00

Thanks,

I requested for SMTP server and they gave me an SMTP server that is created from brevo.com and it uses api-key or smtp key to authenticate instead of user id and password but when I put that API key on password if fails.

score 0 · Answer 7 · 2023-07-06T07:57:11-04:00

As I mentioned in my original post, my code was very bare-bones. While it supports authentication, it does not have any encryption features enabled.

You may also need to enable TLS/SSL and possibly STARTTLS in %Net.SMTP. It's also likely that you'll have to specify an alternate port; the default is 25.

Updated to support TLS/STARTTLS and alternate port:

Class User.Mail Extends %RegisteredObject
{

Property MailServer As %String [ InitialExpression = "hostname@domainname" ];
Property FromAddress As %String [ InitialExpression = "fromaddress@domainname" ];
Property EmailCreds As %String [ InitialExpression = "SMTPServer" ];
// May have to change value to 587 or 465 if STARTTLS required
Property SMTPPort As %Integer [ InitialExpression = 25 ];
// The TLS/SSL client configuration will need to be added in
// Management Console: System Administration | Security
Property SSLConfig As %String [ InitialExpression = "TLSClient"];
// Set to 0 if STARTTLS is not necessary
Property UseSTARTTLS As %Boolean [ IniitalExpression = 1 ];
Method Send(pToAddress As %String, pSubject As %String, pBody As %String = "") As %Status
{
    Set tEmail = ##class(%Net.SMTP).%New()
    Set tEmail.port = ..SMTPPort
    Set tEmail.SSLConfiguration = ..SSLConfig
    // STARTTLS: 1 for yes, 0 or omit the following line for no
    Set tEmail.UseSTARTTLS = ..UseSTARTTLS
    If pEmailCreds '= ""
    {
        #dim tCred As Ens.Config.Credentials
        Set tSC = ##class(Ens.Config.Credentials).GetCredentialsObj(.tCred,$CLASSNAME(),"Ens.Config.Credentials",..EmailCreds)
        Return:$$$ISERR(tSC) tSC
        Set tAuth = ##class(%Net.Authenticator).%New()
        Set tAuth.UserName = tCred.Username
        Set tAuth.Password = tCred.PasswordGet()
        Set tEmail.authenticator = tAuth
    }
    Set tEmail.smtpserver = ..MailServer
    Set tEmail.timezone="LOCAL"
    Set tMsg = ##class(%Net.MailMessage).%New()
    Set tMsg.From = ..FromAddress
    Do tMsg.To.Insert(pToAddress)
    Set tMsg.Subject = pSubject
    Set tMsg.Charset = "utf-8"
    Do tMsg.TextData.Write(pBody)
    Return tEmail.Send(tMsg)
}

}

Link to the %Net.SMTP documentation

If you're still having issues authenticating, you will need to reach out to your SMTP provider.
