Step by step tutorial to add Interactive map and visualize geographic data

Article

Muhammad Waseem · Feb 9, 2023 2m read

Open Exchange

#CSP #Embedded Python #JavaScript #InterSystems IRIS #Open Exchange

Hi Community,

In this article I will demonstrate below steps to add Interactive map and visualize geographic data to web application:

Step1 : Install Application
Step2 : Create CSP Page
Step3 : Extend dc.IrisGeoMap.Folium class
Step4 : Invoke DrawGeoDetails() Method

So Let us start.

Step1 : Install Application

First of all we need to install iris-geo-map application by using ZPM

zpm "install iris-geo-map"

Step2 : Create CSP Page

<html>
<head>
<!-- Put your page Title here -->
<title>	Iris-Geo_Map app </title>
</head>
<body>
        <!-- Put your page code here -->
        My page body
</body>
</html>

Step3 : Extend dc.IrisGeoMap.Folium class

<html>
<head>
<title> Iris-Geo_Map app </title>
</head>
<body >
<csp:class encoded=1 super="%CSP.Page,dc.IrisGeoMap.Folium">
   <!-- Put your page code here -->
        My page body
</body>
</html>

Step4 : Invoke DrawGeoDetails() Method

in the final step we have to invoke DrawGeoDetails() method of dc.IrisGeoMapc.Foium class
In the below example we are passing the locations as a string seperated by ","

<html>
<head>
<title> Iris-Geo_Map app </title>
</head>
<body >
<csp:class encoded=1 super="%CSP.Page,dc.IrisGeoMap.Folium">
<h1>How to add Interactive Maps to CSP application by using Iris-Geo_Map app </h1>
<!--  Invoke DrawGeoDetails function and Pass location string seperated by "," -->
<div>
#(..DrawGeoDetails("3555 S Ocean Dr Hollywood FL 33019,Boston,NY,Las Vegas,University park Dallas,Denver,Chicago"))#
</div>
</body>
</html>

We can pass address by :

Proper address like "3555 S Ocean Dr Hollywood FL 33019"
Part of the address
Place Name
City Name

NOTE : System will get latitude and longitude values and mark the location on the map

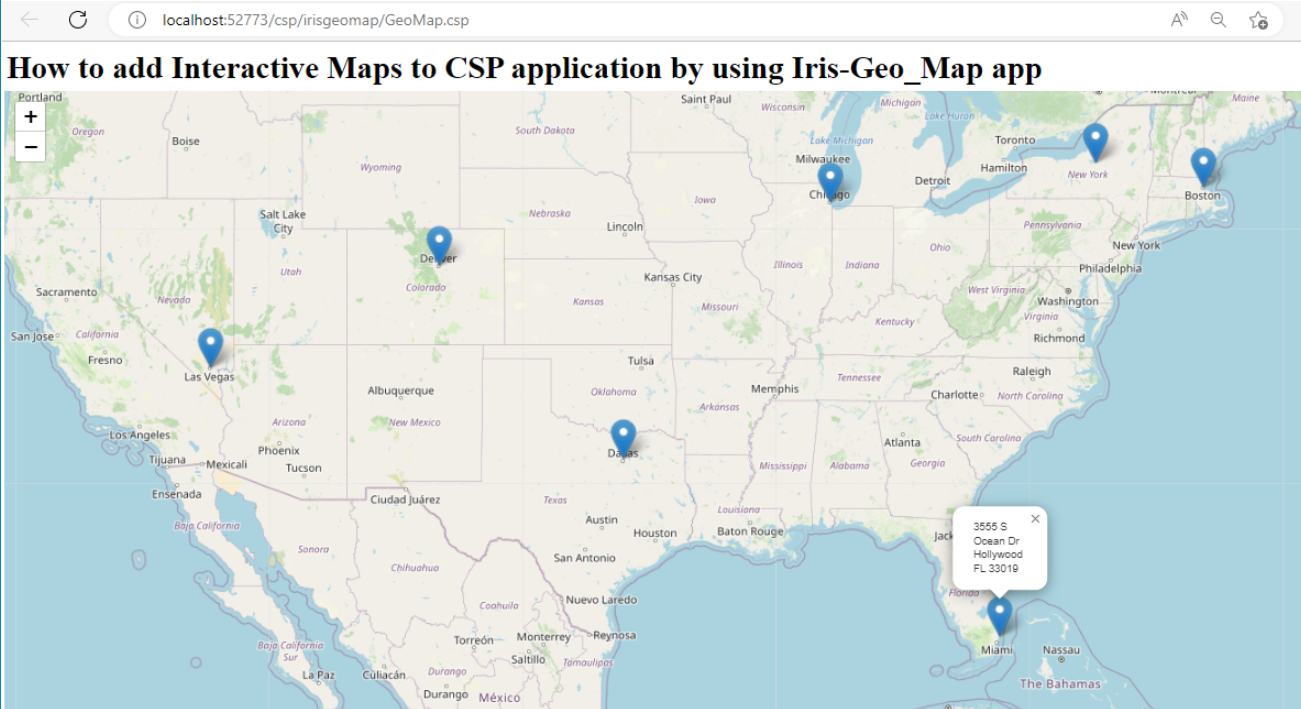

Below is the final output
